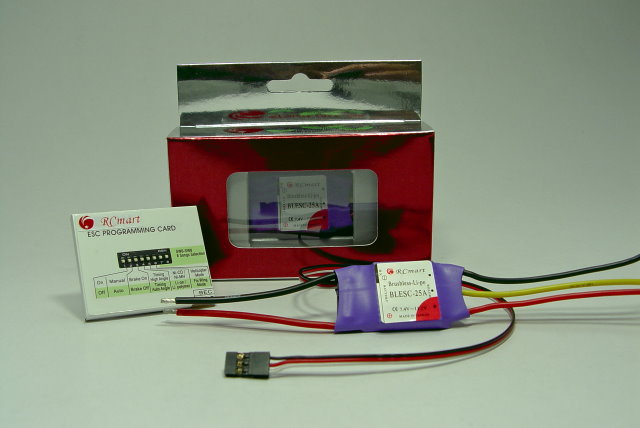

Melody series ~ the multi-purpose ESC

    The Melody-series ESC is one of the electric power products series (EPP-series) of RCmart group. This series ESC is designed for multi-purpose using. it is suitable for RC helicopters, fixed-propeller airplanes, and folding-propeller airplanes. It possess a versatile applications; on the inputs, it can using the Li-based and Ni-based batteries, and the voltage accept from 6.0V ~ 14.4 V; on the outputs, it can control the brushless motors of 2-poles (up to 210 krpm), 6-poles (up to 70 krpm), and 12-poles (up to 35 krpm), there¡¦re included the mostly brushless motors on the markets.

    For easy operating, it¡¦s with a throttle auto-detection function. Once the user¡¦s transmitter power on, it can detect throttle travel range automatically. Other functions also can be setting by the transmitter or the optional programming card. User is easy to setting many operation modes on any occasions: such as the helicopter (soft-start) / airplane (hard-start) mode; brake / non-brake mode; high-angle / low-angle timing mode; and with 8 kinds of the prompt melodies. As for safety issues, this series ESC was built in a series protection mechanisms. Include the over heat protection, battery over / lower voltage protection, and a soft cut-off mechanism to avoid the crash affairs.

    This Melody-series ESC now is provides 6 products: 12 A, 25A, 45A, 45AH, 75A, and 75AH for wide range RC model applications.
